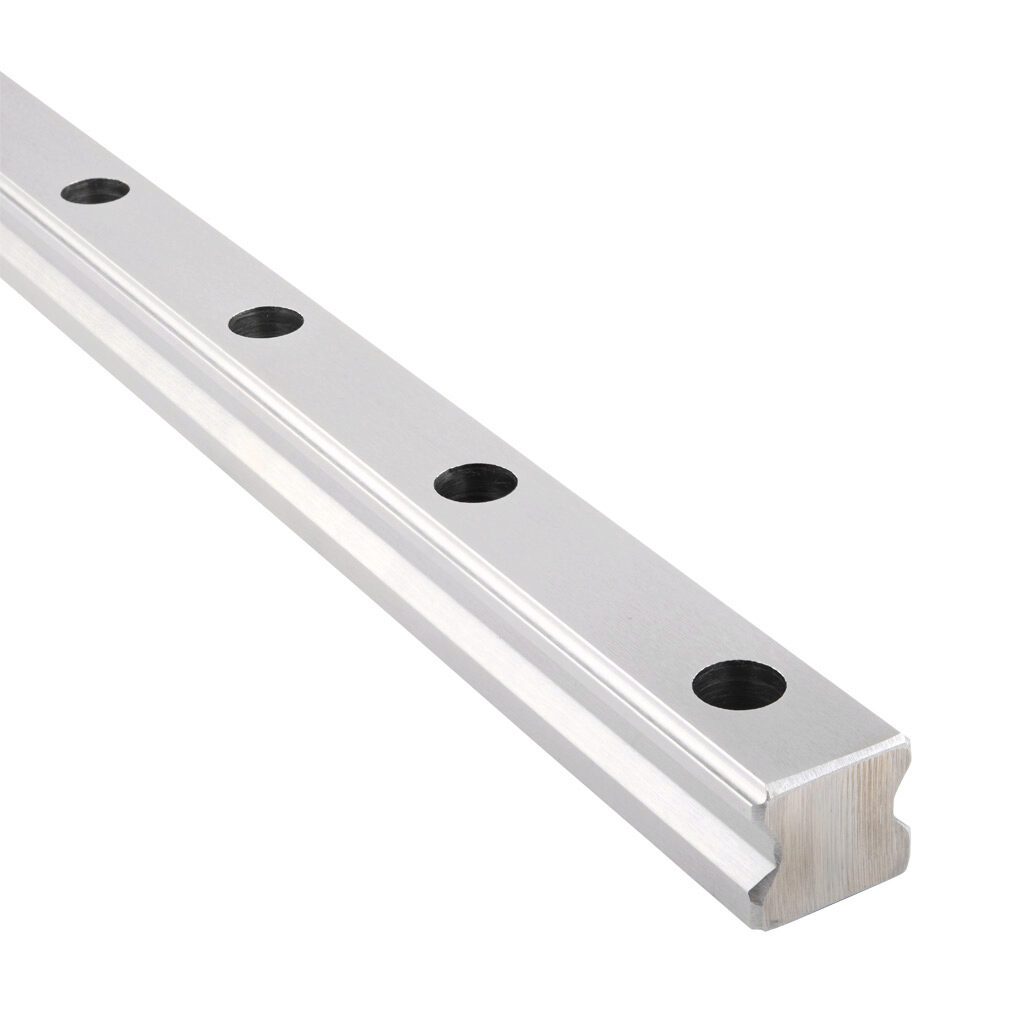

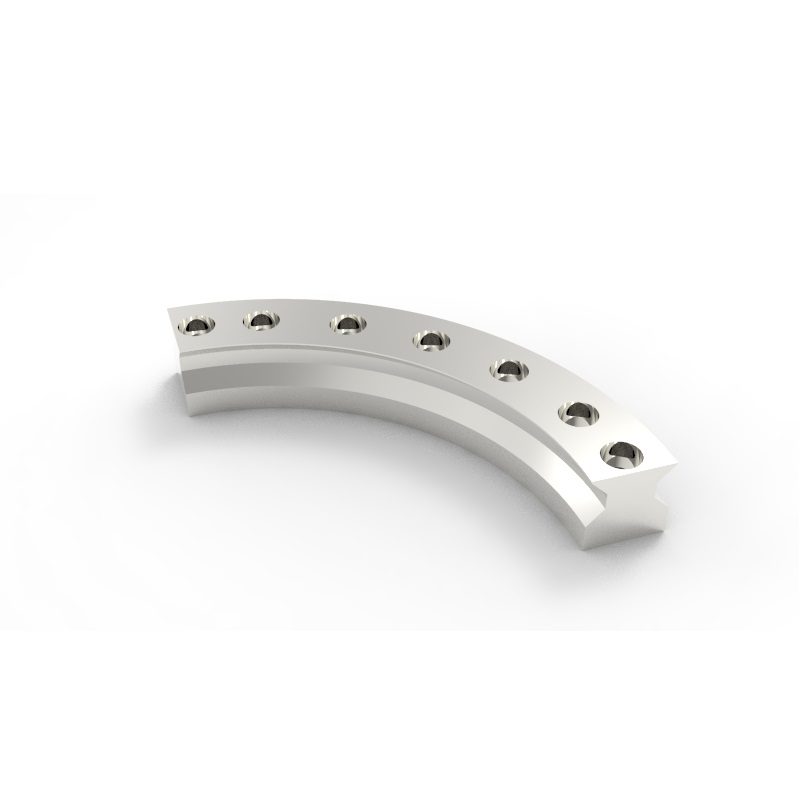

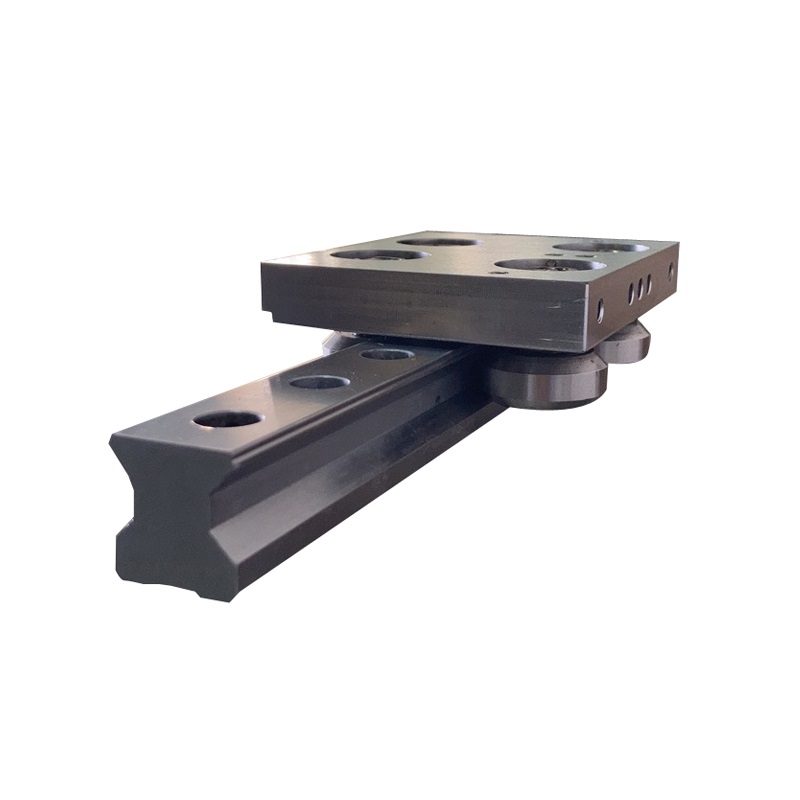

The precision ring slide and track system is a precise roller guide system. Precision ring slide and track systems provide a unique method of achieving an almost limitless variety of open or closed circuits by combining straight slides with curved slides. They can be used in any orientation, from horizontal to vertical.

Advantages

• high precision
• high loads from 30kg to 100kg per carriage
• high speed up to 8m/second
• secondary positioning accuracy ±0.05mm
• continuous mounting of the rails possible by ground, slant rail joints
• many combinations from rails with rollers possible
• all mounting positions possible – vertical, horizontal, overhead…
• stainless steel is available
