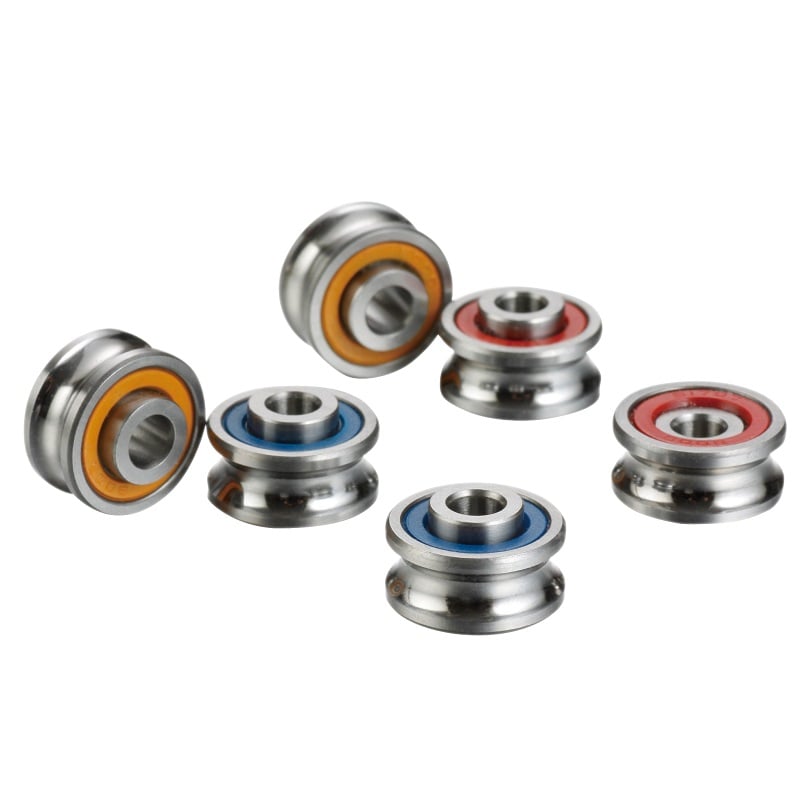

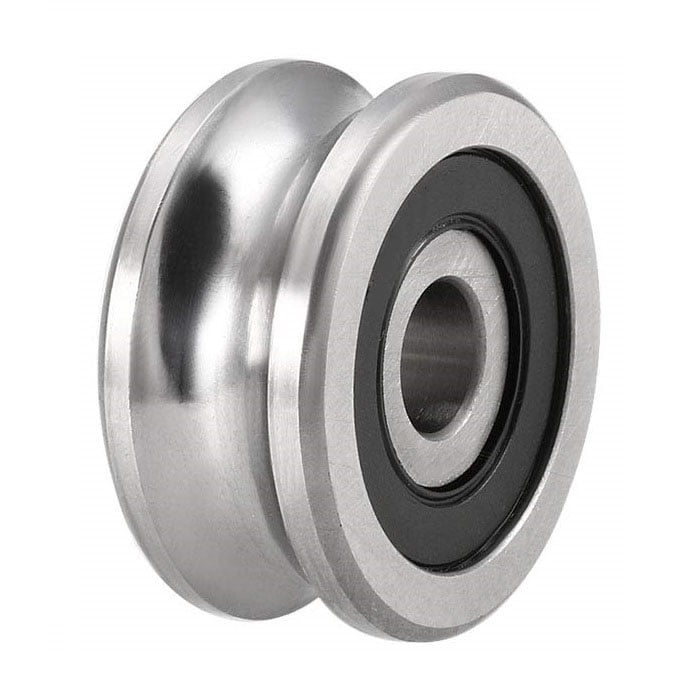

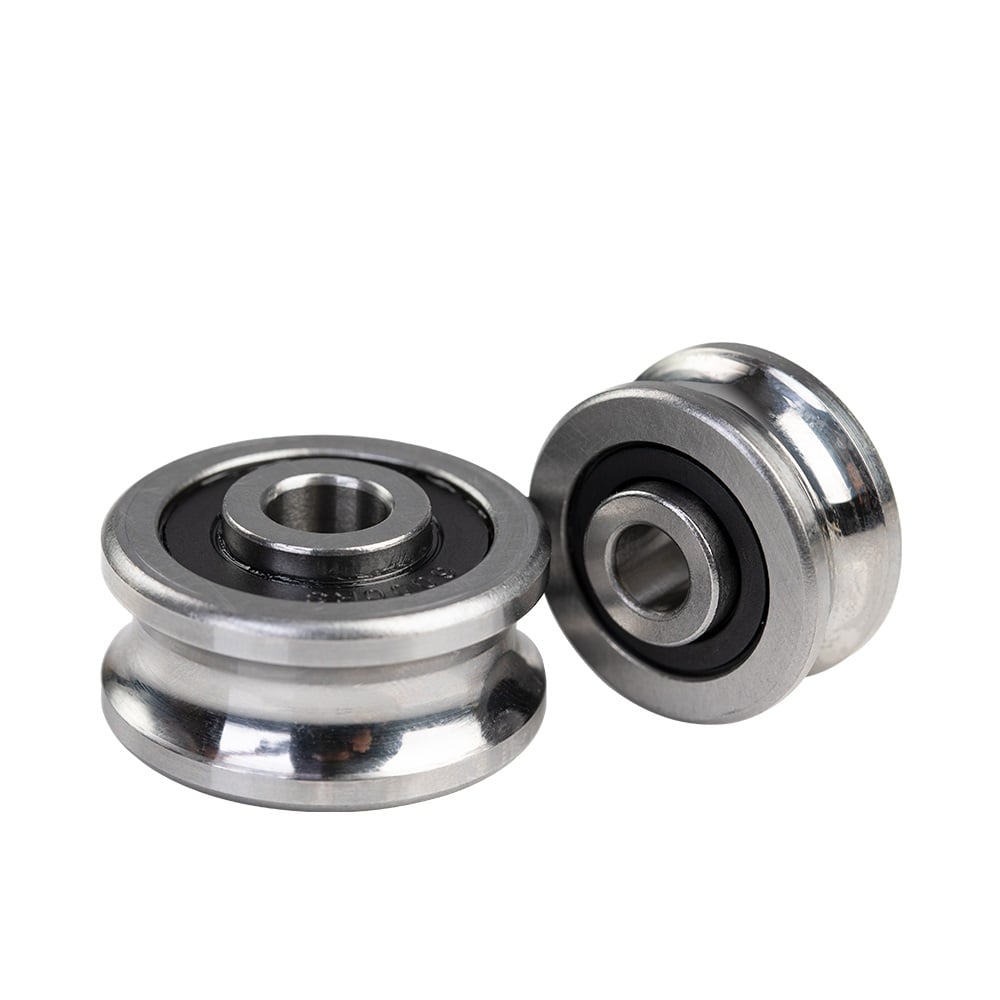

SG, LFR..N and LFRI Track rollers

SG, LFR..N, and LFRI series track rollers with extended inner rings are used to guide the carriages and support the forces. SG sereies is with filling slots. LFR..N and LFRI series is without filling slots. These double row angular contact ball bearings have an outer ring with a gothic arch profile raceway, are sealed on both sides, and are greased for life. They can support axial loads from both sides and high radial forces due to the thick-walled outer ring.  Two points contact between gothic arch groove profile and track. Dimensional tolerance according to P6(ABEC-3). Radial run-out according to P5(ABEC-5). Internal radial clearance according to normal(CN).

Solution advantage:

• Low noise, low vibration, highest lifetime
• Optimized sealing (no grease leakage, low friction, dust protection)
• Low acoustic noise
• High speed, high precision
• Direct contact with manufacturer and designers
• Short delivery time (stainless steel version on request)

PRODUCT FILTERS AND TABLE

Linear shaft diameter (inch)

~

Bore diameter (inch)

~

Roller diameter (inch)

~

Roller width (inch)

~

Roller material
52100 | 100Cr6 | GCr15
440C | X105CrMo17 | 1.4125
Overal width (inch)

~

Designation

Interchange code

FILTERS
Toggle : Metric Imperial   Sort By :
Designation Linear shaft diameter Bore diameter Outside diameter Inner ring width Effective dynamic load rating as track roller (radial) Effective static load rating as track roller (radial) Fatigue limit load Maximum dynamic load rating as track roller (radial) Maximum static load rating as track roller (radial) Overall width
dS d D B Cr C0r Pu Fr F0r L
inch
inch
inch
inch
lbf
lbf
lbf
lbf
lbf
inch
SG15-2RS 6 5 17 8.75 1630 900 44.5 2230 1800 9.75
SG15N-2RS 6 5 17 9.25 1630 900 44.5 2230 1800 9.75
SG20-2RS 8 6 24 11.55 4120 2300 115 2550 4600 12.75
SG20N-2RS 8 6 24 12.05 4120 2300 115 2550 4600 12.75
SG25-2RS 10 8 30 14 5090 2600 150 3050 3900 15.5
SG25N-2RS 10 8 30 14.5 5090 2600 150 3050 3900 15.5
SG35-2RS 12 12 42 20.5 13200 7700 370 6120 11600 22
SG35N-2RS 12 12 42 21 13200 7700 370 6120 11600 22
LFR50/5-4N-2Z 4 5 16 8.5 1560 850 43 1300 1700 8.5
LFR50/5-5-2Z 5 5 17 8.5 1630 900 44.5 2230 1800 8.5
LFR50/5-6N-2Z 6 5 17 8.5 1630 900 44.5 2230 1800 8.5
LFR50/8-6N-2Z 6 8 24 12.5 4120 2300 115 2550 4600 12.5
LFR50/8-8N-2Z 8 8 24 12.5 4120 2300 115 2550 4600 12.5
LFRI50/8-6N-2Z 6 6.1 24 15.1 4120 2300 115 2550 4600 15.1
LFRI5201-10-2Z 10 10.5 35 20.7 8300 5000 250 4500 8300 35
SG15-10-2RS 10 5 17 8.75 1630 900 44.5 2230 1800 9.75
dS Linear shaft diameter 6 inch
d Bore diameter 5 inch
D Outside diameter 17 inch
B Inner ring width 8.75 inch
Cr Effective dynamic load rating as track roller (radial) 1630 lbf
C0r Effective static load rating as track roller (radial) 900 lbf
Pu Fatigue limit load 44.5 lbf
Fr Maximum dynamic load rating as track roller (radial) 2230 lbf
F0r Maximum static load rating as track roller (radial) 1800 lbf
L Overall width 9.75 inch
dS Linear shaft diameter 6 inch
d Bore diameter 5 inch
D Outside diameter 17 inch
B Inner ring width 9.25 inch
Cr Effective dynamic load rating as track roller (radial) 1630 lbf
C0r Effective static load rating as track roller (radial) 900 lbf
Pu Fatigue limit load 44.5 lbf
Fr Maximum dynamic load rating as track roller (radial) 2230 lbf
F0r Maximum static load rating as track roller (radial) 1800 lbf
L Overall width 9.75 inch
dS Linear shaft diameter 8 inch
d Bore diameter 6 inch
D Outside diameter 24 inch
B Inner ring width 11.55 inch
Cr Effective dynamic load rating as track roller (radial) 4120 lbf
C0r Effective static load rating as track roller (radial) 2300 lbf
Pu Fatigue limit load 115 lbf
Fr Maximum dynamic load rating as track roller (radial) 2550 lbf
F0r Maximum static load rating as track roller (radial) 4600 lbf
L Overall width 12.75 inch
dS Linear shaft diameter 8 inch
d Bore diameter 6 inch
D Outside diameter 24 inch
B Inner ring width 12.05 inch
Cr Effective dynamic load rating as track roller (radial) 4120 lbf
C0r Effective static load rating as track roller (radial) 2300 lbf
Pu Fatigue limit load 115 lbf
Fr Maximum dynamic load rating as track roller (radial) 2550 lbf
F0r Maximum static load rating as track roller (radial) 4600 lbf
L Overall width 12.75 inch
dS Linear shaft diameter 10 inch
d Bore diameter 8 inch
D Outside diameter 30 inch
B Inner ring width 14 inch
Cr Effective dynamic load rating as track roller (radial) 5090 lbf
C0r Effective static load rating as track roller (radial) 2600 lbf
Pu Fatigue limit load 150 lbf
Fr Maximum dynamic load rating as track roller (radial) 3050 lbf
F0r Maximum static load rating as track roller (radial) 3900 lbf
L Overall width 15.5 inch
dS Linear shaft diameter 10 inch
d Bore diameter 8 inch
D Outside diameter 30 inch
B Inner ring width 14.5 inch
Cr Effective dynamic load rating as track roller (radial) 5090 lbf
C0r Effective static load rating as track roller (radial) 2600 lbf
Pu Fatigue limit load 150 lbf
Fr Maximum dynamic load rating as track roller (radial) 3050 lbf
F0r Maximum static load rating as track roller (radial) 3900 lbf
L Overall width 15.5 inch
dS Linear shaft diameter 12 inch
d Bore diameter 12 inch
D Outside diameter 42 inch
B Inner ring width 20.5 inch
Cr Effective dynamic load rating as track roller (radial) 13200 lbf
C0r Effective static load rating as track roller (radial) 7700 lbf
Pu Fatigue limit load 370 lbf
Fr Maximum dynamic load rating as track roller (radial) 6120 lbf
F0r Maximum static load rating as track roller (radial) 11600 lbf
L Overall width 22 inch
dS Linear shaft diameter 12 inch
d Bore diameter 12 inch
D Outside diameter 42 inch
B Inner ring width 21 inch
Cr Effective dynamic load rating as track roller (radial) 13200 lbf
C0r Effective static load rating as track roller (radial) 7700 lbf
Pu Fatigue limit load 370 lbf
Fr Maximum dynamic load rating as track roller (radial) 6120 lbf
F0r Maximum static load rating as track roller (radial) 11600 lbf
L Overall width 22 inch
dS Linear shaft diameter 4 inch
d Bore diameter 5 inch
D Outside diameter 16 inch
B Inner ring width 8.5 inch
Cr Effective dynamic load rating as track roller (radial) 1560 lbf
C0r Effective static load rating as track roller (radial) 850 lbf
Pu Fatigue limit load 43 lbf
Fr Maximum dynamic load rating as track roller (radial) 1300 lbf
F0r Maximum static load rating as track roller (radial) 1700 lbf
L Overall width 8.5 inch
dS Linear shaft diameter 5 inch
d Bore diameter 5 inch
D Outside diameter 17 inch
B Inner ring width 8.5 inch
Cr Effective dynamic load rating as track roller (radial) 1630 lbf
C0r Effective static load rating as track roller (radial) 900 lbf
Pu Fatigue limit load 44.5 lbf
Fr Maximum dynamic load rating as track roller (radial) 2230 lbf
F0r Maximum static load rating as track roller (radial) 1800 lbf
L Overall width 8.5 inch
dS Linear shaft diameter 6 inch
d Bore diameter 5 inch
D Outside diameter 17 inch
B Inner ring width 8.5 inch
Cr Effective dynamic load rating as track roller (radial) 1630 lbf
C0r Effective static load rating as track roller (radial) 900 lbf
Pu Fatigue limit load 44.5 lbf
Fr Maximum dynamic load rating as track roller (radial) 2230 lbf
F0r Maximum static load rating as track roller (radial) 1800 lbf
L Overall width 8.5 inch
dS Linear shaft diameter 6 inch
d Bore diameter 8 inch
D Outside diameter 24 inch
B Inner ring width 12.5 inch
Cr Effective dynamic load rating as track roller (radial) 4120 lbf
C0r Effective static load rating as track roller (radial) 2300 lbf
Pu Fatigue limit load 115 lbf
Fr Maximum dynamic load rating as track roller (radial) 2550 lbf
F0r Maximum static load rating as track roller (radial) 4600 lbf
L Overall width 12.5 inch
dS Linear shaft diameter 8 inch
d Bore diameter 8 inch
D Outside diameter 24 inch
B Inner ring width 12.5 inch
Cr Effective dynamic load rating as track roller (radial) 4120 lbf
C0r Effective static load rating as track roller (radial) 2300 lbf
Pu Fatigue limit load 115 lbf
Fr Maximum dynamic load rating as track roller (radial) 2550 lbf
F0r Maximum static load rating as track roller (radial) 4600 lbf
L Overall width 12.5 inch
dS Linear shaft diameter 6 inch
d Bore diameter 6.1 inch
D Outside diameter 24 inch
B Inner ring width 15.1 inch
Cr Effective dynamic load rating as track roller (radial) 4120 lbf
C0r Effective static load rating as track roller (radial) 2300 lbf
Pu Fatigue limit load 115 lbf
Fr Maximum dynamic load rating as track roller (radial) 2550 lbf
F0r Maximum static load rating as track roller (radial) 4600 lbf
L Overall width 15.1 inch
dS Linear shaft diameter 10 inch
d Bore diameter 10.5 inch
D Outside diameter 35 inch
B Inner ring width 20.7 inch
Cr Effective dynamic load rating as track roller (radial) 8300 lbf
C0r Effective static load rating as track roller (radial) 5000 lbf
Pu Fatigue limit load 250 lbf
Fr Maximum dynamic load rating as track roller (radial) 4500 lbf
F0r Maximum static load rating as track roller (radial) 8300 lbf
L Overall width 35 inch
dS Linear shaft diameter 10 inch
d Bore diameter 5 inch
D Outside diameter 17 inch
B Inner ring width 8.75 inch
Cr Effective dynamic load rating as track roller (radial) 1630 lbf
C0r Effective static load rating as track roller (radial) 900 lbf
Pu Fatigue limit load 44.5 lbf
Fr Maximum dynamic load rating as track roller (radial) 2230 lbf
F0r Maximum static load rating as track roller (radial) 1800 lbf
L Overall width 9.75 inch
Linear shaft diameter
dS
6 inch
Bore diameter
d
5 inch
Outside diameter
D
17 inch
Inner ring width
B
8.75 inch
Effective dynamic load rating as track roller (radial)
Cr
1630 lbf
Effective static load rating as track roller (radial)
C0r
900 lbf
Fatigue limit load
Pu
44.5 lbf
Maximum dynamic load rating as track roller (radial)
Fr
2230 lbf
Maximum static load rating as track roller (radial)
F0r
1800 lbf
Overall width
L
9.75 inch
Linear shaft diameter
dS
6 inch
Bore diameter
d
5 inch
Outside diameter
D
17 inch
Inner ring width
B
9.25 inch
Effective dynamic load rating as track roller (radial)
Cr
1630 lbf
Effective static load rating as track roller (radial)
C0r
900 lbf
Fatigue limit load
Pu
44.5 lbf
Maximum dynamic load rating as track roller (radial)
Fr
2230 lbf
Maximum static load rating as track roller (radial)
F0r
1800 lbf
Overall width
L
9.75 inch
Linear shaft diameter
dS
8 inch
Bore diameter
d
6 inch
Outside diameter
D
24 inch
Inner ring width
B
11.55 inch
Effective dynamic load rating as track roller (radial)
Cr
4120 lbf
Effective static load rating as track roller (radial)
C0r
2300 lbf
Fatigue limit load
Pu
115 lbf
Maximum dynamic load rating as track roller (radial)
Fr
2550 lbf
Maximum static load rating as track roller (radial)
F0r
4600 lbf
Overall width
L
12.75 inch
Linear shaft diameter
dS
8 inch
Bore diameter
d
6 inch
Outside diameter
D
24 inch
Inner ring width
B
12.05 inch
Effective dynamic load rating as track roller (radial)
Cr
4120 lbf
Effective static load rating as track roller (radial)
C0r
2300 lbf
Fatigue limit load
Pu
115 lbf
Maximum dynamic load rating as track roller (radial)
Fr
2550 lbf
Maximum static load rating as track roller (radial)
F0r
4600 lbf
Overall width
L
12.75 inch
Linear shaft diameter
dS
10 inch
Bore diameter
d
8 inch
Outside diameter
D
30 inch
Inner ring width
B
14 inch
Effective dynamic load rating as track roller (radial)
Cr
5090 lbf
Effective static load rating as track roller (radial)
C0r
2600 lbf
Fatigue limit load
Pu
150 lbf
Maximum dynamic load rating as track roller (radial)
Fr
3050 lbf
Maximum static load rating as track roller (radial)
F0r
3900 lbf
Overall width
L
15.5 inch
Linear shaft diameter
dS
10 inch
Bore diameter
d
8 inch
Outside diameter
D
30 inch
Inner ring width
B
14.5 inch
Effective dynamic load rating as track roller (radial)
Cr
5090 lbf
Effective static load rating as track roller (radial)
C0r
2600 lbf
Fatigue limit load
Pu
150 lbf
Maximum dynamic load rating as track roller (radial)
Fr
3050 lbf
Maximum static load rating as track roller (radial)
F0r
3900 lbf
Overall width
L
15.5 inch
Linear shaft diameter
dS
12 inch
Bore diameter
d
12 inch
Outside diameter
D
42 inch
Inner ring width
B
20.5 inch
Effective dynamic load rating as track roller (radial)
Cr
13200 lbf
Effective static load rating as track roller (radial)
C0r
7700 lbf
Fatigue limit load
Pu
370 lbf
Maximum dynamic load rating as track roller (radial)
Fr
6120 lbf
Maximum static load rating as track roller (radial)
F0r
11600 lbf
Overall width
L
22 inch
Linear shaft diameter
dS
12 inch
Bore diameter
d
12 inch
Outside diameter
D
42 inch
Inner ring width
B
21 inch
Effective dynamic load rating as track roller (radial)
Cr
13200 lbf
Effective static load rating as track roller (radial)
C0r
7700 lbf
Fatigue limit load
Pu
370 lbf
Maximum dynamic load rating as track roller (radial)
Fr
6120 lbf
Maximum static load rating as track roller (radial)
F0r
11600 lbf
Overall width
L
22 inch
Linear shaft diameter
dS
4 inch
Bore diameter
d
5 inch
Outside diameter
D
16 inch
Inner ring width
B
8.5 inch
Effective dynamic load rating as track roller (radial)
Cr
1560 lbf
Effective static load rating as track roller (radial)
C0r
850 lbf
Fatigue limit load
Pu
43 lbf
Maximum dynamic load rating as track roller (radial)
Fr
1300 lbf
Maximum static load rating as track roller (radial)
F0r
1700 lbf
Overall width
L
8.5 inch
Linear shaft diameter
dS
5 inch
Bore diameter
d
5 inch
Outside diameter
D
17 inch
Inner ring width
B
8.5 inch
Effective dynamic load rating as track roller (radial)
Cr
1630 lbf
Effective static load rating as track roller (radial)
C0r
900 lbf
Fatigue limit load
Pu
44.5 lbf
Maximum dynamic load rating as track roller (radial)
Fr
2230 lbf
Maximum static load rating as track roller (radial)
F0r
1800 lbf
Overall width
L
8.5 inch
Linear shaft diameter
dS
6 inch
Bore diameter
d
5 inch
Outside diameter
D
17 inch
Inner ring width
B
8.5 inch
Effective dynamic load rating as track roller (radial)
Cr
1630 lbf
Effective static load rating as track roller (radial)
C0r
900 lbf
Fatigue limit load
Pu
44.5 lbf
Maximum dynamic load rating as track roller (radial)
Fr
2230 lbf
Maximum static load rating as track roller (radial)
F0r
1800 lbf
Overall width
L
8.5 inch
Linear shaft diameter
dS
6 inch
Bore diameter
d
8 inch
Outside diameter
D
24 inch
Inner ring width
B
12.5 inch
Effective dynamic load rating as track roller (radial)
Cr
4120 lbf
Effective static load rating as track roller (radial)
C0r
2300 lbf
Fatigue limit load
Pu
115 lbf
Maximum dynamic load rating as track roller (radial)
Fr
2550 lbf
Maximum static load rating as track roller (radial)
F0r
4600 lbf
Overall width
L
12.5 inch
Linear shaft diameter
dS
8 inch
Bore diameter
d
8 inch
Outside diameter
D
24 inch
Inner ring width
B
12.5 inch
Effective dynamic load rating as track roller (radial)
Cr
4120 lbf
Effective static load rating as track roller (radial)
C0r
2300 lbf
Fatigue limit load
Pu
115 lbf
Maximum dynamic load rating as track roller (radial)
Fr
2550 lbf
Maximum static load rating as track roller (radial)
F0r
4600 lbf
Overall width
L
12.5 inch
Linear shaft diameter
dS
6 inch
Bore diameter
d
6.1 inch
Outside diameter
D
24 inch
Inner ring width
B
15.1 inch
Effective dynamic load rating as track roller (radial)
Cr
4120 lbf
Effective static load rating as track roller (radial)
C0r
2300 lbf
Fatigue limit load
Pu
115 lbf
Maximum dynamic load rating as track roller (radial)
Fr
2550 lbf
Maximum static load rating as track roller (radial)
F0r
4600 lbf
Overall width
L
15.1 inch
Linear shaft diameter
dS
10 inch
Bore diameter
d
10.5 inch
Outside diameter
D
35 inch
Inner ring width
B
20.7 inch
Effective dynamic load rating as track roller (radial)
Cr
8300 lbf
Effective static load rating as track roller (radial)
C0r
5000 lbf
Fatigue limit load
Pu
250 lbf
Maximum dynamic load rating as track roller (radial)
Fr
4500 lbf
Maximum static load rating as track roller (radial)
F0r
8300 lbf
Overall width
L
35 inch
Linear shaft diameter
dS
10 inch
Bore diameter
d
5 inch
Outside diameter
D
17 inch
Inner ring width
B
8.75 inch
Effective dynamic load rating as track roller (radial)
Cr
1630 lbf
Effective static load rating as track roller (radial)
C0r
900 lbf
Fatigue limit load
Pu
44.5 lbf
Maximum dynamic load rating as track roller (radial)
Fr
2230 lbf
Maximum static load rating as track roller (radial)
F0r
1800 lbf
Overall width
L
9.75 inch
111

©Copyright 2022 C&H Bearing, All Rights Reserved Terms of use Privacy Policy SITEMAP
C&H BEARING WEBSITE
