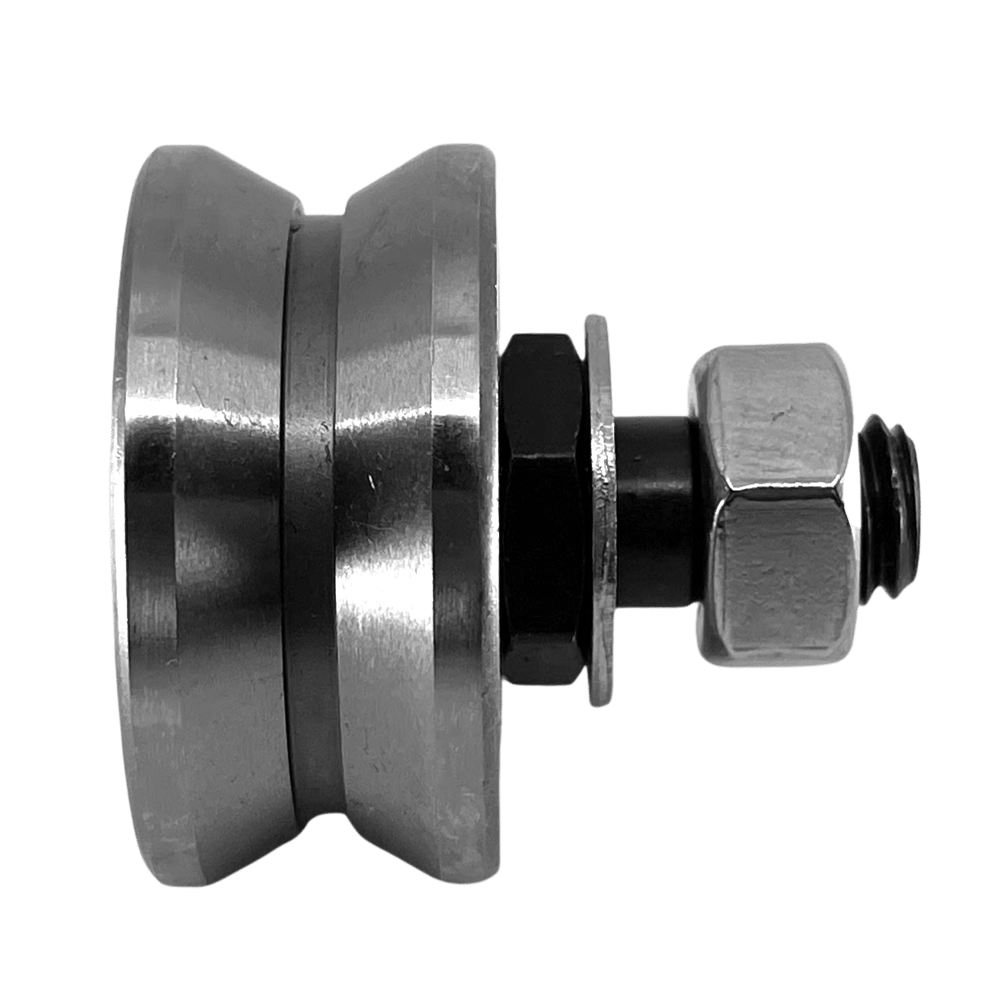

SVI studded 120° V groove track rollers

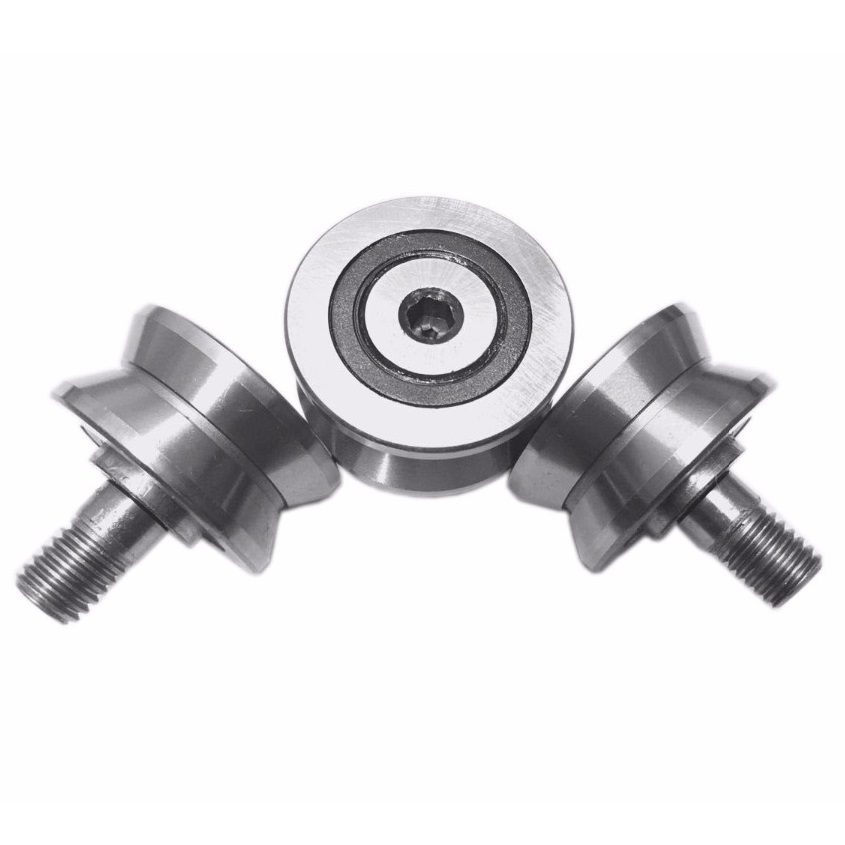

RVC..N/PVE..N integral studded V profiled track rollers are constructed with double-row angular contact ball bearings. The inner ring and bolt is an integrity.

Features and Variant

  • Low noise, high speed, high precision
  • Concentric or eccentric integral bolts
  • Shielded or sealed
  • Dimension and run-out according to ISO P6 (ABEC-3)
  • NLGI 2 grease





PRODUCT FILTERS AND TABLE

Linear shaft diameter (inch)

~

Roller diameter (inch)

~

Overall width (inch)

~

Roller Width (inch)

~

Thread

5
Concentric
Ecccentric
Designation

Interchange code

RESET ALL
FILTERS
Toggle ： Metric Imperial   Sort By :
Designation Linear shaft diameter Outside diameter Overall width Width outer ring Thread size Dynamic load rating as track roller (radial) Static load rating as track roller (radial)
dS D B C G Cr C0r
inch
inch
inch
inch
lbf
lbf
lbf
SVIC22 10 22 24 11 M6 2450 1620
SVIE22 10 22 24 11 M6 2450 1620
SVIC30 10 30 31 14 M8 4490 2700
SVIE30 10 30 31 14 M8 4490 2700
SVIC38 10 38 40 17 M10 7290 4550
SVIE38 10 38 40 17 M10 7290 4550
SVIC41 20 41 44 20 M12 8180 5100
SVIE41 20 41 44 20 M12 8180 5100
SVIC58 20 58 53 25 M16 16580 9200
SVIE58 20 58 53 25 M16 16580 9200
SVIC22
dS Linear shaft diameter 10 inch
D Outside diameter 22 inch
B Overall width 24 inch
C Width outer ring 11 inch
G Thread size M6 lbf
Cr Dynamic load rating as track roller (radial) 2450 lbf
C0r Static load rating as track roller (radial) 1620 lbf
SVIE22
dS Linear shaft diameter 10 inch
D Outside diameter 22 inch
B Overall width 24 inch
C Width outer ring 11 inch
G Thread size M6 lbf
Cr Dynamic load rating as track roller (radial) 2450 lbf
C0r Static load rating as track roller (radial) 1620 lbf
SVIC30
dS Linear shaft diameter 10 inch
D Outside diameter 30 inch
B Overall width 31 inch
C Width outer ring 14 inch
G Thread size M8 lbf
Cr Dynamic load rating as track roller (radial) 4490 lbf
C0r Static load rating as track roller (radial) 2700 lbf
SVIE30
dS Linear shaft diameter 10 inch
D Outside diameter 30 inch
B Overall width 31 inch
C Width outer ring 14 inch
G Thread size M8 lbf
Cr Dynamic load rating as track roller (radial) 4490 lbf
C0r Static load rating as track roller (radial) 2700 lbf
SVIC38
dS Linear shaft diameter 10 inch
D Outside diameter 38 inch
B Overall width 40 inch
C Width outer ring 17 inch
G Thread size M10 lbf
Cr Dynamic load rating as track roller (radial) 7290 lbf
C0r Static load rating as track roller (radial) 4550 lbf
SVIE38
dS Linear shaft diameter 10 inch
D Outside diameter 38 inch
B Overall width 40 inch
C Width outer ring 17 inch
G Thread size M10 lbf
Cr Dynamic load rating as track roller (radial) 7290 lbf
C0r Static load rating as track roller (radial) 4550 lbf
SVIC41
dS Linear shaft diameter 20 inch
D Outside diameter 41 inch
B Overall width 44 inch
C Width outer ring 20 inch
G Thread size M12 lbf
Cr Dynamic load rating as track roller (radial) 8180 lbf
C0r Static load rating as track roller (radial) 5100 lbf
SVIE41
dS Linear shaft diameter 20 inch
D Outside diameter 41 inch
B Overall width 44 inch
C Width outer ring 20 inch
G Thread size M12 lbf
Cr Dynamic load rating as track roller (radial) 8180 lbf
C0r Static load rating as track roller (radial) 5100 lbf
SVIC58
dS Linear shaft diameter 20 inch
D Outside diameter 58 inch
B Overall width 53 inch
C Width outer ring 25 inch
G Thread size M16 lbf
Cr Dynamic load rating as track roller (radial) 16580 lbf
C0r Static load rating as track roller (radial) 9200 lbf
SVIE58
dS Linear shaft diameter 20 inch
D Outside diameter 58 inch
B Overall width 53 inch
C Width outer ring 25 inch
G Thread size M16 lbf
Cr Dynamic load rating as track roller (radial) 16580 lbf
C0r Static load rating as track roller (radial) 9200 lbf
Linear shaft diameter
dS
10 inch
Outside diameter
D
22 inch
Overall width
B
24 inch
Width outer ring
C
11 inch
Thread size
G
M6 lbf
Dynamic load rating as track roller (radial)
Cr
2450 lbf
Static load rating as track roller (radial)
C0r
1620 lbf
Linear shaft diameter
dS
10 inch
Outside diameter
D
22 inch
Overall width
B
24 inch
Width outer ring
C
11 inch
Thread size
G
M6 lbf
Dynamic load rating as track roller (radial)
Cr
2450 lbf
Static load rating as track roller (radial)
C0r
1620 lbf
Linear shaft diameter
dS
10 inch
Outside diameter
D
30 inch
Overall width
B
31 inch
Width outer ring
C
14 inch
Thread size
G
M8 lbf
Dynamic load rating as track roller (radial)
Cr
4490 lbf
Static load rating as track roller (radial)
C0r
2700 lbf
Linear shaft diameter
dS
10 inch
Outside diameter
D
30 inch
Overall width
B
31 inch
Width outer ring
C
14 inch
Thread size
G
M8 lbf
Dynamic load rating as track roller (radial)
Cr
4490 lbf
Static load rating as track roller (radial)
C0r
2700 lbf
Linear shaft diameter
dS
10 inch
Outside diameter
D
38 inch
Overall width
B
40 inch
Width outer ring
C
17 inch
Thread size
G
M10 lbf
Dynamic load rating as track roller (radial)
Cr
7290 lbf
Static load rating as track roller (radial)
C0r
4550 lbf
Linear shaft diameter
dS
10 inch
Outside diameter
D
38 inch
Overall width
B
40 inch
Width outer ring
C
17 inch
Thread size
G
M10 lbf
Dynamic load rating as track roller (radial)
Cr
7290 lbf
Static load rating as track roller (radial)
C0r
4550 lbf
Linear shaft diameter
dS
20 inch
Outside diameter
D
41 inch
Overall width
B
44 inch
Width outer ring
C
20 inch
Thread size
G
M12 lbf
Dynamic load rating as track roller (radial)
Cr
8180 lbf
Static load rating as track roller (radial)
C0r
5100 lbf
Linear shaft diameter
dS
20 inch
Outside diameter
D
41 inch
Overall width
B
44 inch
Width outer ring
C
20 inch
Thread size
G
M12 lbf
Dynamic load rating as track roller (radial)
Cr
8180 lbf
Static load rating as track roller (radial)
C0r
5100 lbf
Linear shaft diameter
dS
20 inch
Outside diameter
D
58 inch
Overall width
B
53 inch
Width outer ring
C
25 inch
Thread size
G
M16 lbf
Dynamic load rating as track roller (radial)
Cr
16580 lbf
Static load rating as track roller (radial)
C0r
9200 lbf
Linear shaft diameter
dS
20 inch
Outside diameter
D
58 inch
Overall width
B
53 inch
Width outer ring
C
25 inch
Thread size
G
M16 lbf
Dynamic load rating as track roller (radial)
Cr
16580 lbf
Static load rating as track roller (radial)
C0r
9200 lbf
