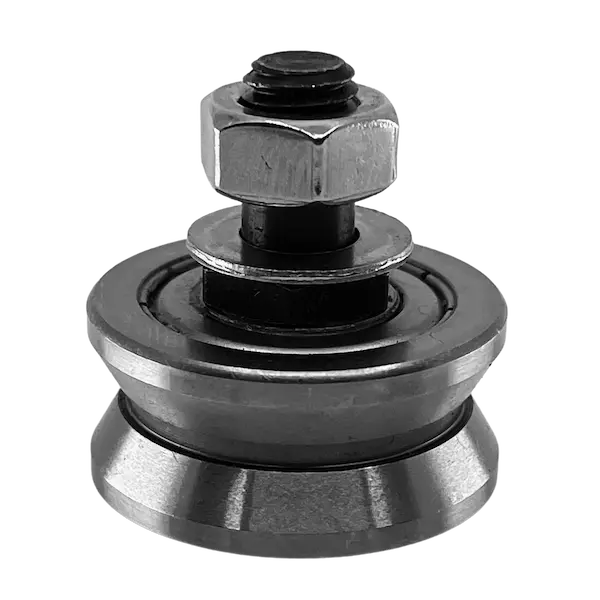

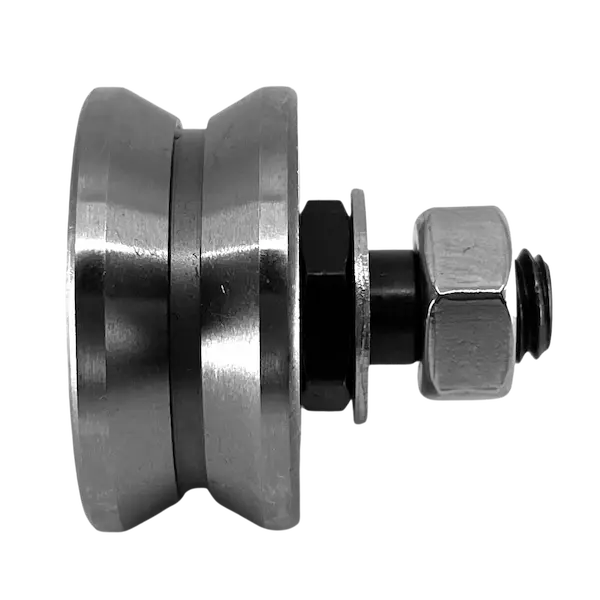

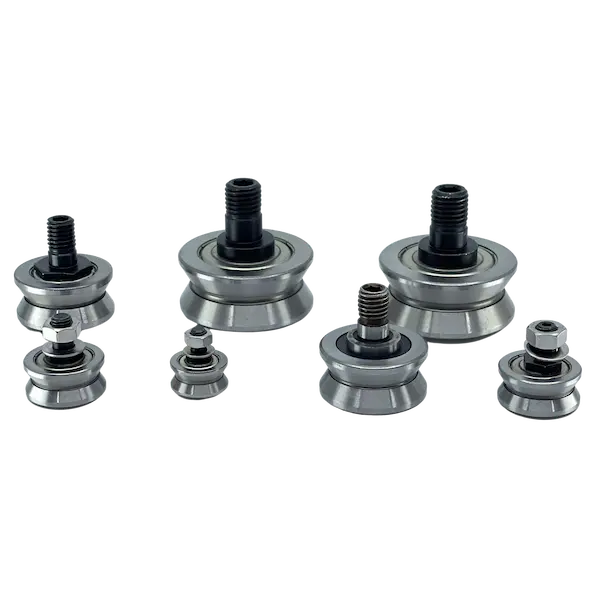

Ролики SVI с шипами и 120° V-образными канавками для направляющих

Ролики дорожек RVC..N/PVE..N с интегральным штифтом и профилем V конструируются с двухрядными угловыми контактными шариковыми подшипниками. Внутреннее кольцо и болт представляют целостность.

Особенности и варианты

  • Низкий уровень шума, высокая скорость, высокая точность
  • Концентрические или эксцентрические интегральные болты
  • С защитой или уплотнением
  • Габариты и биения в соответствии с ISO P6 (ABEC-3)
  • Смазка NLGI 2





ПРОДУКТОВЫЕ ФИЛЬТРЫ И ТАБЛИЦА

Linear shaft diameter (mm)

~

Roller diameter (mm)

~

Overall width (mm)

~

Roller Width (mm)

~

Thread

5
Concentric
Ecccentric
Designation

Interchange code

СБРОСИТЬ ВСЕ
СЕЛЕКЦИЯ
Переключить ： Метрическая система Имперская система   Сортировать по :
Designation Linear shaft diameter Outside diameter Overall width Width outer ring Thread size Dynamic load rating as track roller (radial) Static load rating as track roller (radial)
dS D B C G Cr C0r
mm
mm
mm
mm
N
N
N
SVIC22 10 22 24 11 M6 2450 1620
SVIE22 10 22 24 11 M6 2450 1620
SVIC30 10 30 31 14 M8 4490 2700
SVIE30 10 30 31 14 M8 4490 2700
SVIC38 10 38 40 17 M10 7290 4550
SVIE38 10 38 40 17 M10 7290 4550
SVIC41 20 41 44 20 M12 8180 5100
SVIE41 20 41 44 20 M12 8180 5100
SVIC58 20 58 53 25 M16 16580 9200
SVIE58 20 58 53 25 M16 16580 9200
SVIC22
dS Linear shaft diameter 10 mm
D Outside diameter 22 mm
B Overall width 24 mm
C Width outer ring 11 mm
G Thread size M6 N
Cr Dynamic load rating as track roller (radial) 2450 N
C0r Static load rating as track roller (radial) 1620 N
SVIE22
dS Linear shaft diameter 10 mm
D Outside diameter 22 mm
B Overall width 24 mm
C Width outer ring 11 mm
G Thread size M6 N
Cr Dynamic load rating as track roller (radial) 2450 N
C0r Static load rating as track roller (radial) 1620 N
SVIC30
dS Linear shaft diameter 10 mm
D Outside diameter 30 mm
B Overall width 31 mm
C Width outer ring 14 mm
G Thread size M8 N
Cr Dynamic load rating as track roller (radial) 4490 N
C0r Static load rating as track roller (radial) 2700 N
SVIE30
dS Linear shaft diameter 10 mm
D Outside diameter 30 mm
B Overall width 31 mm
C Width outer ring 14 mm
G Thread size M8 N
Cr Dynamic load rating as track roller (radial) 4490 N
C0r Static load rating as track roller (radial) 2700 N
SVIC38
dS Linear shaft diameter 10 mm
D Outside diameter 38 mm
B Overall width 40 mm
C Width outer ring 17 mm
G Thread size M10 N
Cr Dynamic load rating as track roller (radial) 7290 N
C0r Static load rating as track roller (radial) 4550 N
SVIE38
dS Linear shaft diameter 10 mm
D Outside diameter 38 mm
B Overall width 40 mm
C Width outer ring 17 mm
G Thread size M10 N
Cr Dynamic load rating as track roller (radial) 7290 N
C0r Static load rating as track roller (radial) 4550 N
SVIC41
dS Linear shaft diameter 20 mm
D Outside diameter 41 mm
B Overall width 44 mm
C Width outer ring 20 mm
G Thread size M12 N
Cr Dynamic load rating as track roller (radial) 8180 N
C0r Static load rating as track roller (radial) 5100 N
SVIE41
dS Linear shaft diameter 20 mm
D Outside diameter 41 mm
B Overall width 44 mm
C Width outer ring 20 mm
G Thread size M12 N
Cr Dynamic load rating as track roller (radial) 8180 N
C0r Static load rating as track roller (radial) 5100 N
SVIC58
dS Linear shaft diameter 20 mm
D Outside diameter 58 mm
B Overall width 53 mm
C Width outer ring 25 mm
G Thread size M16 N
Cr Dynamic load rating as track roller (radial) 16580 N
C0r Static load rating as track roller (radial) 9200 N
SVIE58
dS Linear shaft diameter 20 mm
D Outside diameter 58 mm
B Overall width 53 mm
C Width outer ring 25 mm
G Thread size M16 N
Cr Dynamic load rating as track roller (radial) 16580 N
C0r Static load rating as track roller (radial) 9200 N
Linear shaft diameter
dS
10 mm
Outside diameter
D
22 mm
Overall width
B
24 mm
Width outer ring
C
11 mm
Thread size
G
M6 N
Dynamic load rating as track roller (radial)
Cr
2450 N
Static load rating as track roller (radial)
C0r
1620 N
Linear shaft diameter
dS
10 mm
Outside diameter
D
22 mm
Overall width
B
24 mm
Width outer ring
C
11 mm
Thread size
G
M6 N
Dynamic load rating as track roller (radial)
Cr
2450 N
Static load rating as track roller (radial)
C0r
1620 N
Linear shaft diameter
dS
10 mm
Outside diameter
D
30 mm
Overall width
B
31 mm
Width outer ring
C
14 mm
Thread size
G
M8 N
Dynamic load rating as track roller (radial)
Cr
4490 N
Static load rating as track roller (radial)
C0r
2700 N
Linear shaft diameter
dS
10 mm
Outside diameter
D
30 mm
Overall width
B
31 mm
Width outer ring
C
14 mm
Thread size
G
M8 N
Dynamic load rating as track roller (radial)
Cr
4490 N
Static load rating as track roller (radial)
C0r
2700 N
Linear shaft diameter
dS
10 mm
Outside diameter
D
38 mm
Overall width
B
40 mm
Width outer ring
C
17 mm
Thread size
G
M10 N
Dynamic load rating as track roller (radial)
Cr
7290 N
Static load rating as track roller (radial)
C0r
4550 N
Linear shaft diameter
dS
10 mm
Outside diameter
D
38 mm
Overall width
B
40 mm
Width outer ring
C
17 mm
Thread size
G
M10 N
Dynamic load rating as track roller (radial)
Cr
7290 N
Static load rating as track roller (radial)
C0r
4550 N
Linear shaft diameter
dS
20 mm
Outside diameter
D
41 mm
Overall width
B
44 mm
Width outer ring
C
20 mm
Thread size
G
M12 N
Dynamic load rating as track roller (radial)
Cr
8180 N
Static load rating as track roller (radial)
C0r
5100 N
Linear shaft diameter
dS
20 mm
Outside diameter
D
41 mm
Overall width
B
44 mm
Width outer ring
C
20 mm
Thread size
G
M12 N
Dynamic load rating as track roller (radial)
Cr
8180 N
Static load rating as track roller (radial)
C0r
5100 N
Linear shaft diameter
dS
20 mm
Outside diameter
D
58 mm
Overall width
B
53 mm
Width outer ring
C
25 mm
Thread size
G
M16 N
Dynamic load rating as track roller (radial)
Cr
16580 N
Static load rating as track roller (radial)
C0r
9200 N
Linear shaft diameter
dS
20 mm
Outside diameter
D
58 mm
Overall width
B
53 mm
Width outer ring
C
25 mm
Thread size
G
M16 N
Dynamic load rating as track roller (radial)
Cr
16580 N
Static load rating as track roller (radial)
C0r
9200 N
