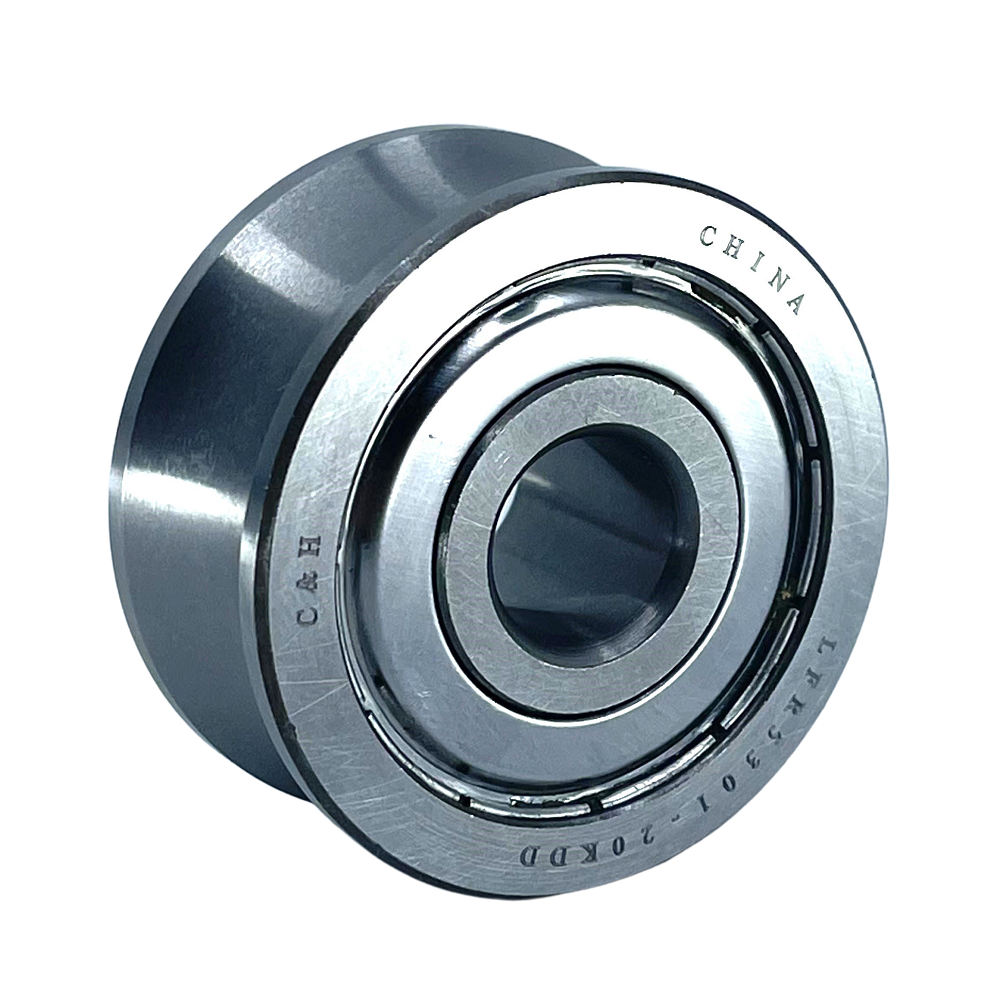

LFR profiled track rollers without filling slots are used to guide the carriages and support the forces. These double row angular contact ball bearings have an outer ring with a gothic arch profile raceway, are sealed on both sides and are greased for life. can support Axial loads from both sides and high radial forces due to the thick-walled outer ring. Two points contact between gothic arch groove profile and track. Accuracy class P6 ISO492/DIN620. Radial and axial runount is below 0.02mm. Radial bearing clearance approaching class CN.
Feature and advantage:
Quality, Innovation and precision define what C&H is all about
C&H products and services are rooted in quality and precision. We are constantly innovative, leaving no stone unturned in our response to customers’ wishes and requirements. We offer the fastest standard and custom deliveries. Our knowledge and experience make us your trusted advisor to provide you with products tailored to your needs.
Unique customized solutions for tough challenges
A standard solution won’t always be the perfect one. This is why C&H develops tailor-made systems that fully respond to all customers’ requirements. Specifications on the form, load, materials or sealing are responded to, resulting in a product that is ready to integrate . Maximum precision and an innovative approach are used in the process. You benefit from a one-stop solution that saves you time, capital and fixed costs.
Always in motion
C&H has its own production facilities in China. When it comes to innovative and custom-made track roller solutions, C&H gains a good reputation in the world. The technical possibilities and challenges our industry presents are constantly changing. We continue to de velop and seek new , innovative solutions to justify our reputation as a skilled supplier.
Rooted in China, Expanding Globally
With our own production facilities in China, we can deliver top quality and precision track rollers worldwide. Due to longstanding experience with the market, C&H can also quickly and accurately react to changing market expectations.
Quality Materials, State of Art Facilities and Outstand Standard
C&H constantly striving for excellence. Following list of our standard material and delivery quality standards.
• Inner and Outer ring: choose ultra-clean bearing steel (same supplier off SKF and FAG), Steel plant variety: Xingcheng Steel, Hubei Xinye Steel, Baosteel
• Steel ball: high precision and low noise G10 or G5 class steel ball; Needle and Cylindrical rollers: Super finish high precision II or III class roller
• Standard grease: Kyodo Yushi Multemp SRL or Kluberplex BEM 34-132 or SINOPEC 7014 Aviation Lubricating Grease
• Sealing solution: The high-quality shields and seals are made of Japanese material.
• Heat Treatment solution: Austria Aichelin Bainite Quenching Furnace
• Dimensional tolerance: P6(ABEC-3) or P5(ABEC-5) (standard product is with normal class 0)
• Radial run out: P6 or P5 (standard product is with normal class 0)
• MOQ for special or custom items: We provide small MOQ requirements for custom-made rollers, that will help users to reduce trial costs.
• Fast lead time: For popular items, we keep stock for fast delivery. For special items, the standard lead time is 60 days.
Inspection Facility
C&H special manufacturing equipment of machine and inspection facilities make accuracy in the angle of bearings’ profile, so the bearing and track can be matched well. Mature manufacturing techniques and critical inspection procedures make all bearings in the Kea (radial runout) of the outer ring with in 0.01mm, so the guide system has the characteristics of long service life and smooth running.
Bearing tolerances and clearances
